MOOBELO M1 Dual Motor Electric Bike | 3000W Peak Power, 180-Mile Range, Off-Road Adventure Ebike
【Conquer All Terrains, Start Infinite Exploration—MOOBELO M1 Peak Power Electric Bike】
Do you crave the ultimate ride that can take you over mountains and easily handle city commutes? The MOOBELO M1 is not just a dual motor ebike; it's your powerful partner for exploring the world. With its unmatched power, amazing range, and superior design, the M1 will redefine your riding experience.
🚀 Unleash Beastly Power and Performance
Dual-Engine Drive, Instant Burst: The MOOBELO M1, this 2000W electric bike, is equipped with two powerful brushless motors, delivering a rated power of 2000W and a formidable peak power of 3000W! Experience lightning-fast acceleration from 0 to 37 mph, effortlessly conquering steep slopes up to 45°, making uphill climbs feel like flat ground.
Shimano 7-Speed Transmission: Paired with the world-renowned Shimano 7-speed transmission system, whether it's a steep climb or high-speed cruising, you'll always find the most suitable gear, making your ride more effortless and efficient.
Intelligent Single/Dual Motor Switching: Switch with a single click during your ride. Use single-motor mode for better power efficiency on city roads, and switch to dual-motor mode for complex terrain, achieving a perfect balance between power and range.
🔋 Say Goodbye to Range Anxiety, Explore Further
UL-Certified Dual Battery System: Equipped with two UL-certified automotive-grade batteries with a total capacity of up to 46Ah (52V 23Ah*2). The built-in intelligent BMS battery management system fully protects battery safety and extends its lifespan.
180-Mile Amazing Range: In pedal-assist mode, a single charge can take you up to 180 miles! Whether for a long-distance tour or a daily commute, the M1 can easily meet your needs.
🏞️ Ultimate Comfort and Absolute Safety
All-Terrain 4.0-inch Fat Tires: The 20-inch x 4.0-inch wide tires provide unparalleled grip and stability, effortlessly handling beaches, snow, forests, and city streets.
Dual Suspension System: The combination of a hydraulic front fork and a rear spring shock absorber effectively filters out bumps, providing a sofa-like comfortable experience even on uneven roads.
Comprehensive Safety Assurance: A powerful hydraulic dual braking system provides reliable stopping power. The ultra-bright LED headlight, horn, and taillights ensure you are clearly seen in any lighting condition, because safety always comes first.
💡 Smart Design and Convenient Experience

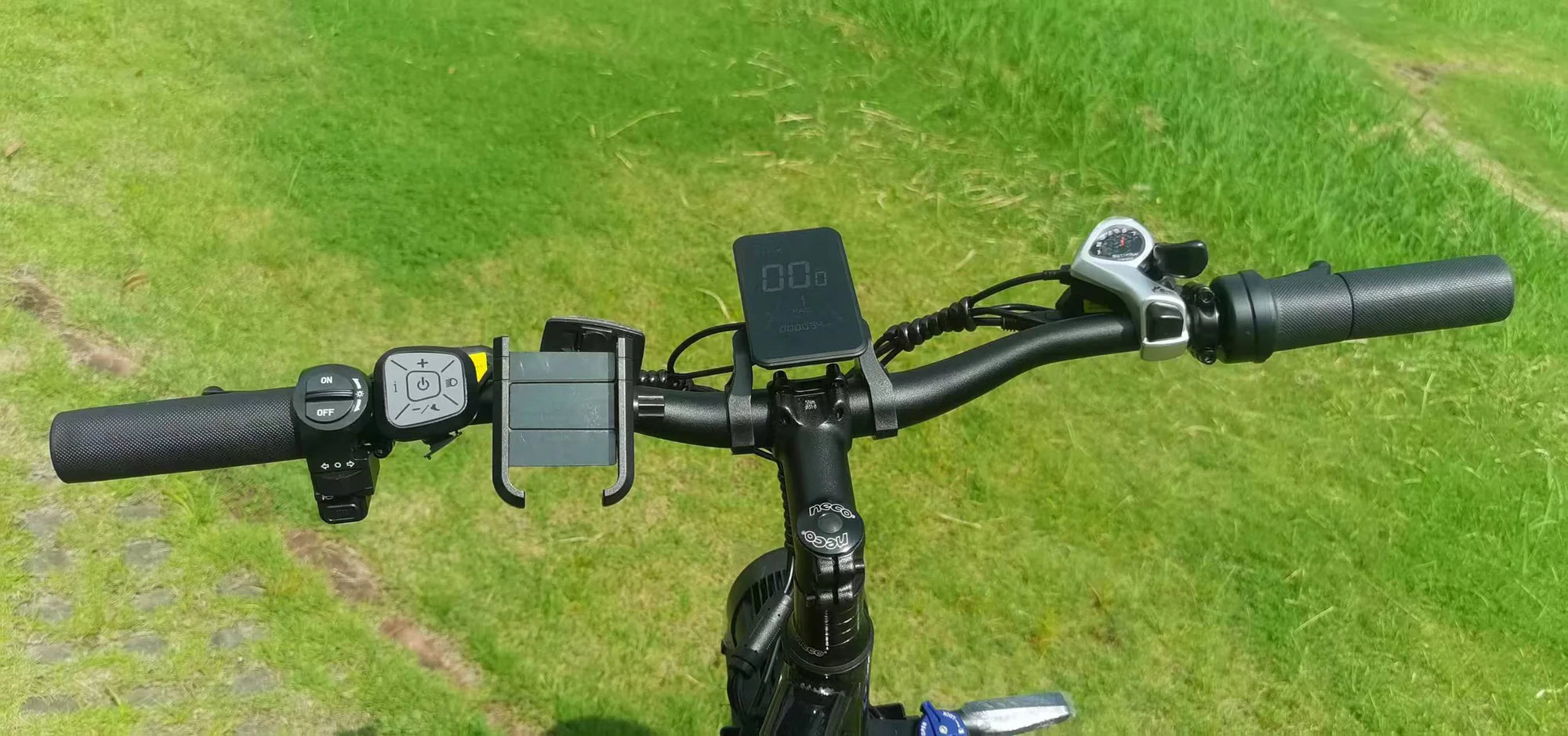

High-Definition LCD Display: Displays real-time information on speed, battery level, and distance traveled, keeping you informed about your ride status at all times.
Thoughtful and Convenient Features: Comes with a 7.2-inch phone holder and a spacious storage box for easy navigation and carrying items. The integrated USB charging port on the frame keeps your electronic devices online at all times.
90% Pre-Assembled: Unboxing allows for easy completion of the remaining assembly, with no need for professional tools, so you can start your ride quickly.
One-Year Warranty: The motor, battery, and charger all come with a one-year warranty, giving you peace of mind.

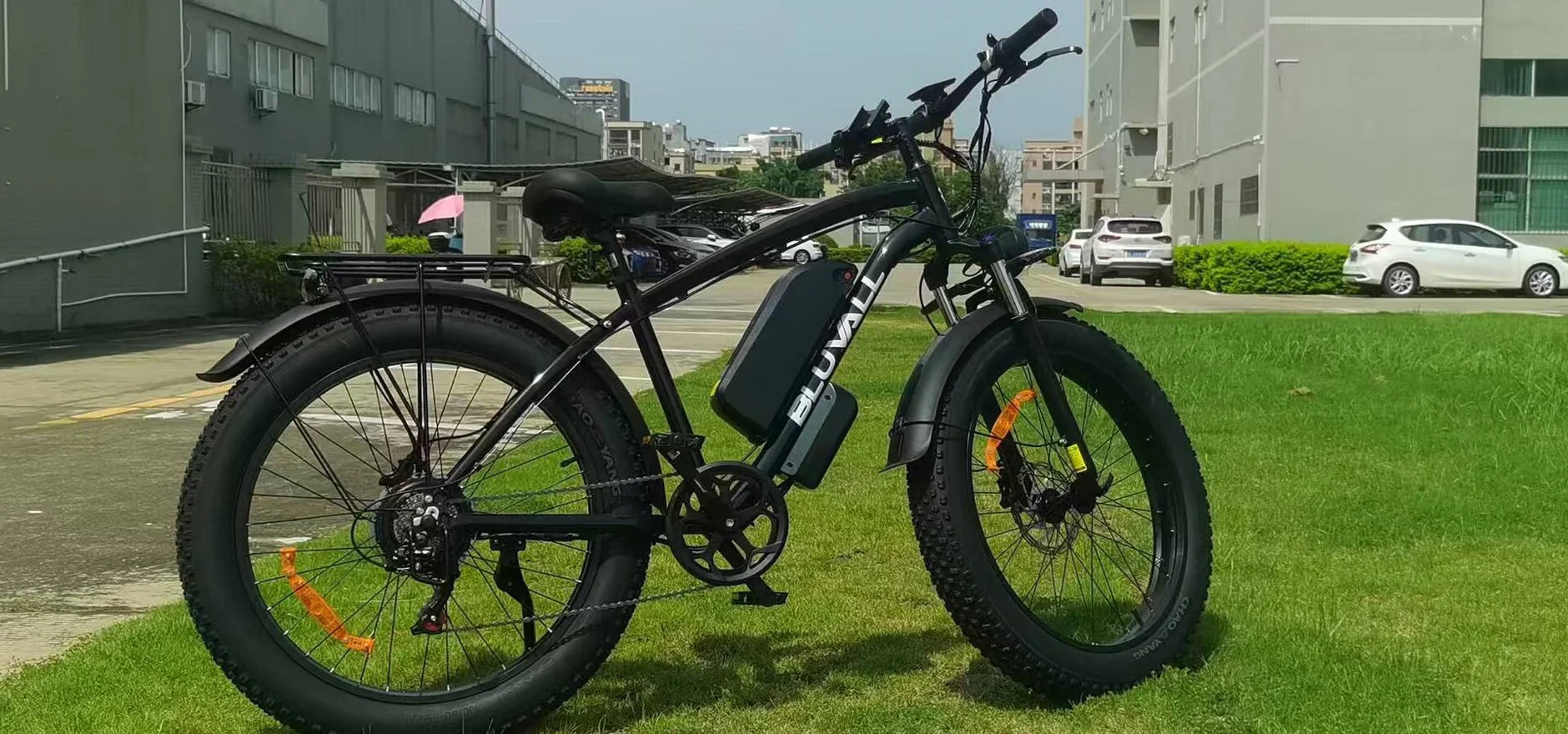

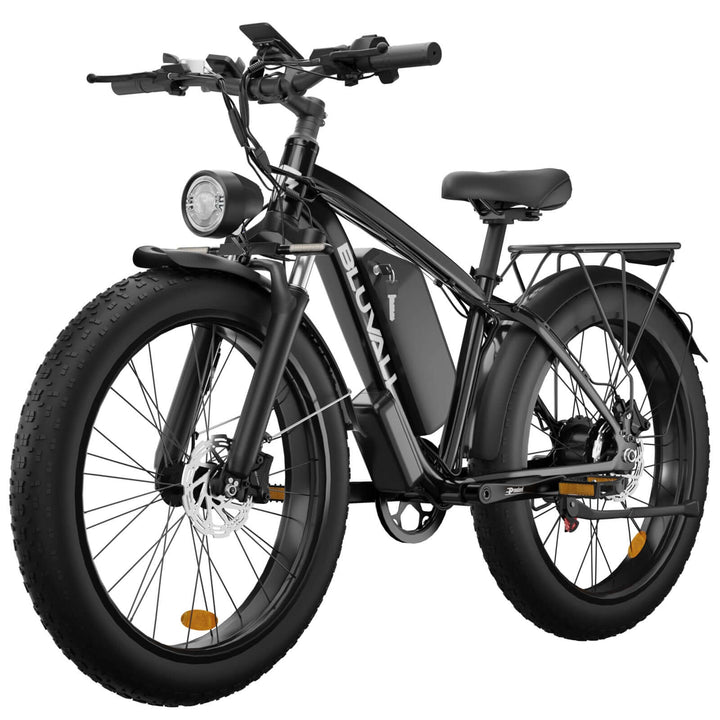

M1 360 View
Bluvall M1 2000W Ebike boast ,rear & front hydraulic disc brakes ,Shimano 7 speed gear etc.
M1 2000W Key Features

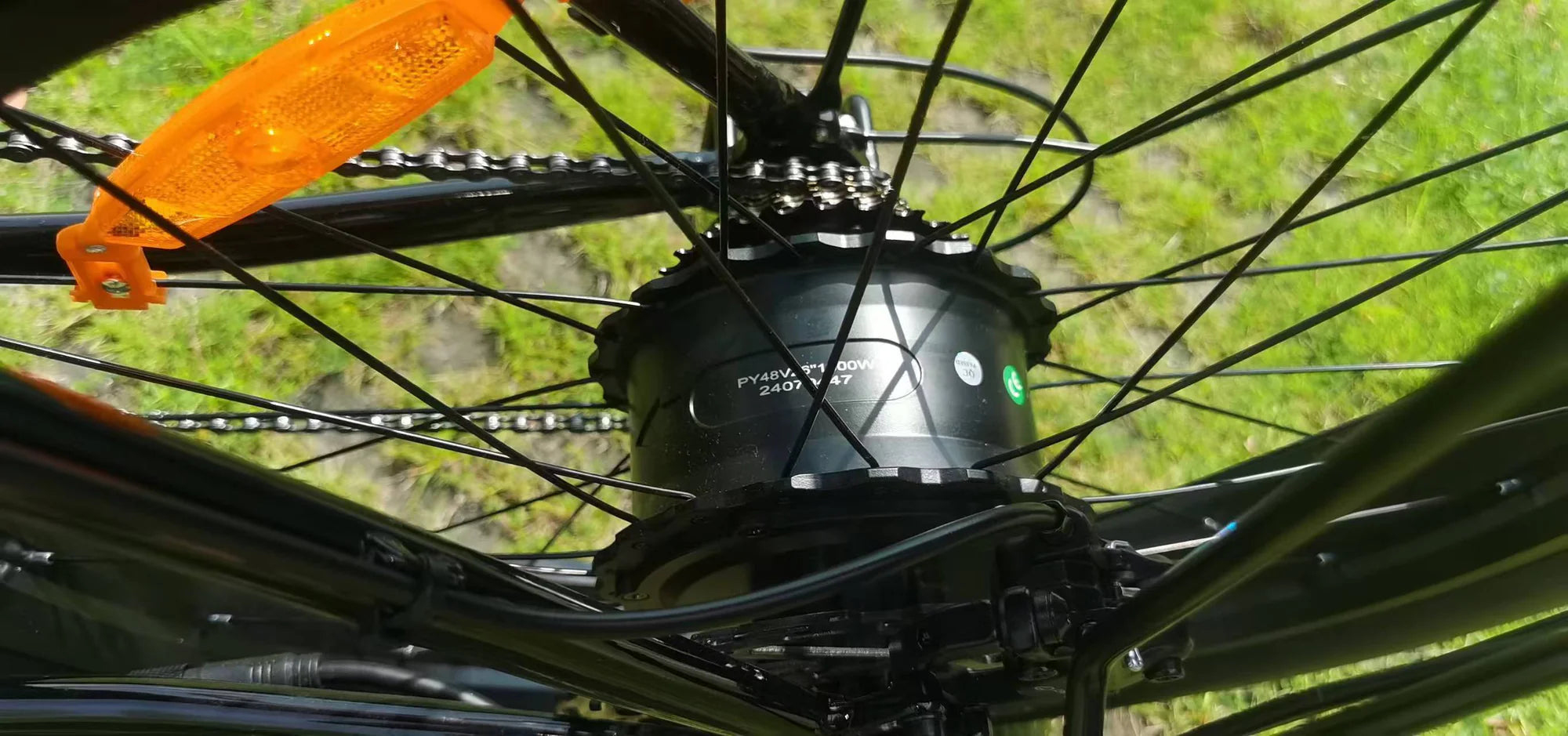

Robust 2000W Motor
The Bluvall B1boasts a robust 2000W high-speed brushless motor, 80NM Torque ideal for tackling tough terrains and steep inclines with ease.

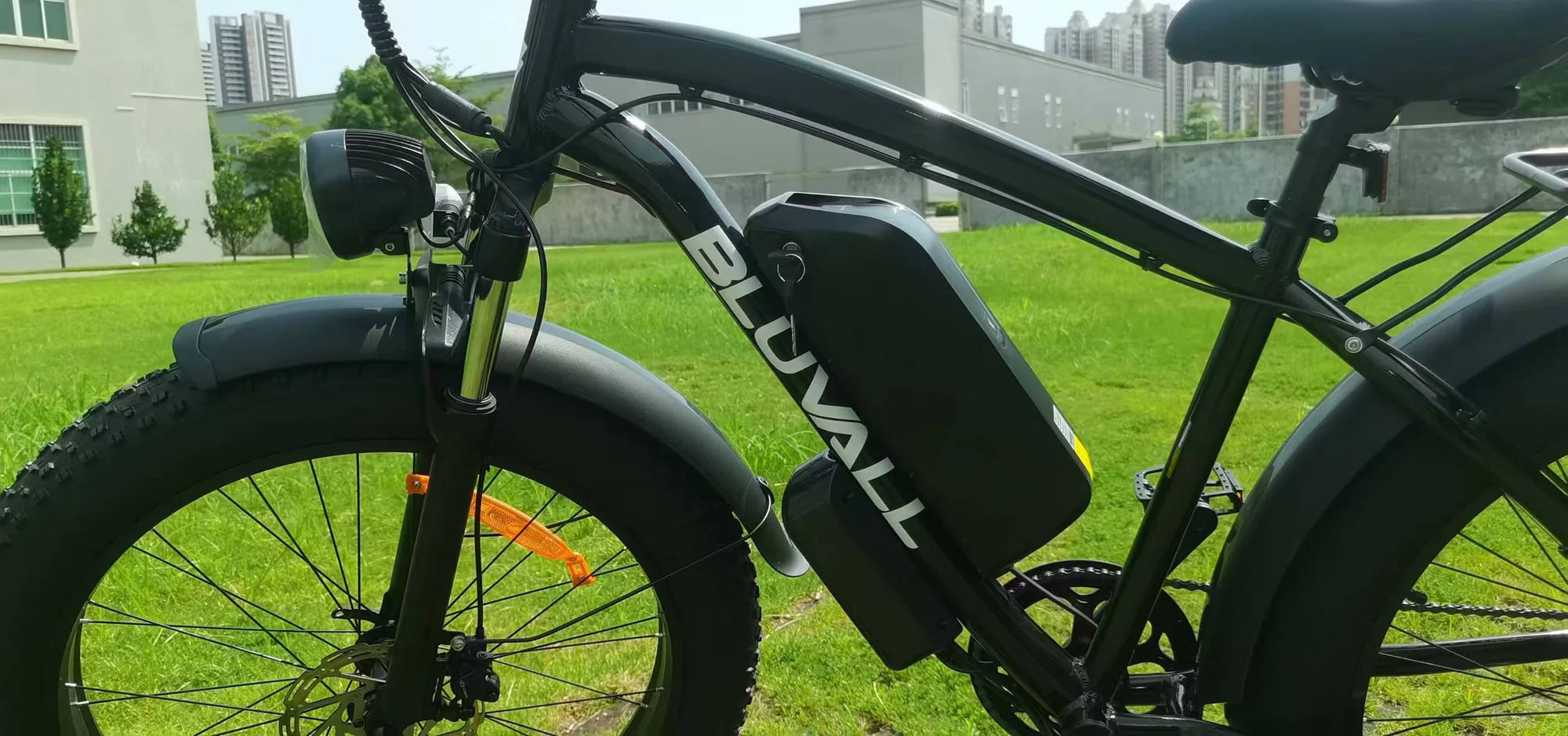

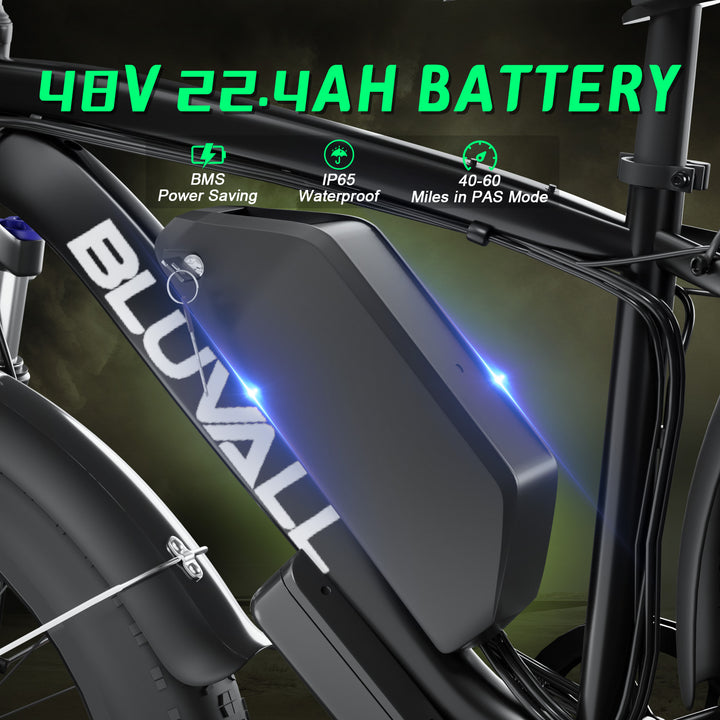

48V22.4AH Battery
UL2849 Certified 48V 22.4Ah rechargeable Lithium-Ion battery.Enjoy an impressive riding range of 40-60 miles on a single charge. This removable battery design allows for convenient off-bike charging, enhancing security.
Aluminum Suspension Fork
Front suspension on this e-bikes absorbs shocks and vibrations, enhancing rider comfort and stability by smoothing out bumps and rough terrain.

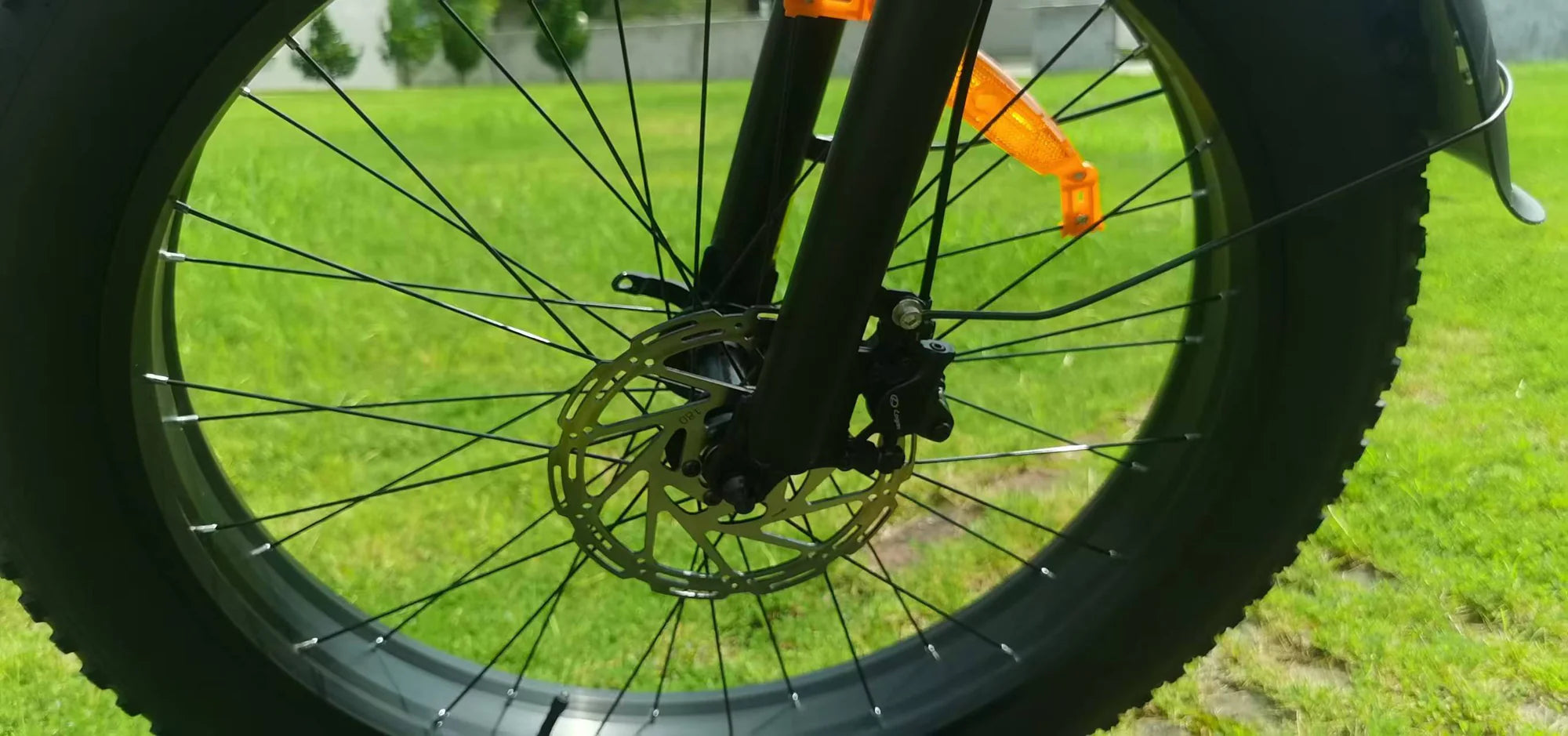

Front & Rear Hydraulic Brakes
Benefiting from rear hydraulic brakes, this bike delivers precise stopping power tailored for optimal rear wheel control. Meanwhile, the front hydraulic brakes ensure superior braking force, essential for swift and efficient stops.
26‘’x4" Fat Tire
Featuring 26'' * 4.0'' fat tires with rugged tread patterns, this bike offers exceptional grip, wear resistance, and anti-skid capabilities. Plus, multiple riding modes accommodate your individual preferences.
Other Details

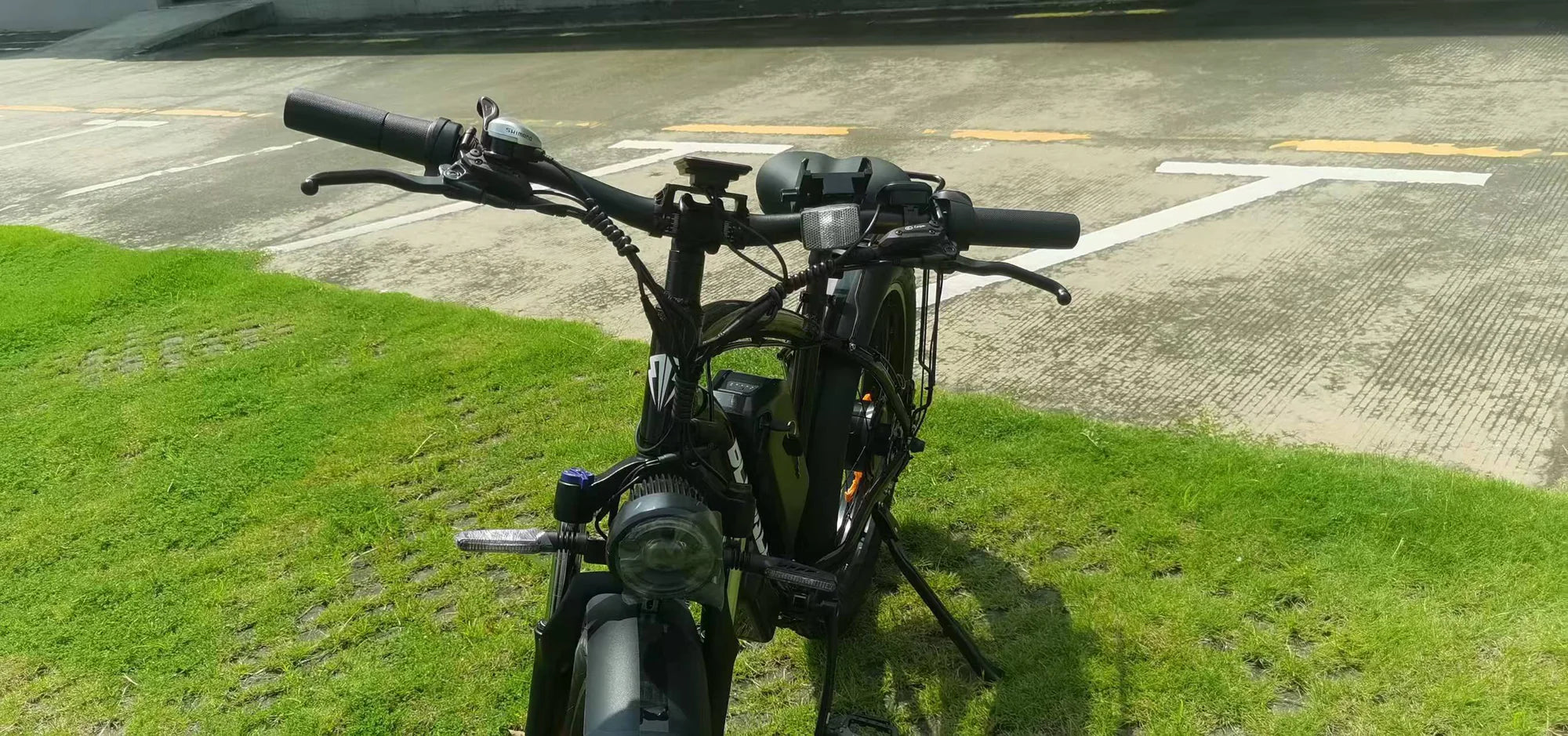

Frame is crafted from durable high-ended aluminum 6061 alloys, ensuring longevity and robustness. The integrated intelligent LCD headlight display elevate the riding experience.
M1 Assembly Guide
Please take note that Bluvall and Zeegr share same product line,both assembly are same.This video suits for all Bluvall and Zeegr 26"x4" fat tire ebikes.
M1 pro arrived 90% assembled ,the rest is easy with this video
Specification
Weight & Size
Weight
- Net Weight:32kg (69lbs) ( including battery)
- Gross Weight:41.5kg (95.56lb)
- Battery Weight:4kg (8.82lb)
- Weight limit:150 kg (330 lb) Payload Capacity
Size
- Product Size:1930x730x1110mm
- Packing Size:1570x330x900mm
General
General
- Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
- Max Speed: 31MPH
- Range:up to 60 Miles by Pedal assist,30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist:5 Levels
E-system
- Battery:Removable Internal Lithium-ion Battery, 48V 16Ah, 720Wh
- Charger:48V 3 Amp Charger, Approx. 6 Hour Charging, Aviation Connector. UL LISTED
- Motor:Rear Geared Hub Motor, Rated 1000w,Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional LCD Smart Display
- Pedal Assist: Cadence Sensor
- Throttle: Twist Throttle
- Front Light:48V 10W LED Light, 30 LUX
Component
Drivetrain
- Shifter:Shimano 7-Speed RevoShift
- Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel:Shimano 14-28T, 7-Speed freewheel
- Pedal: Alloy Platform Pedals
- Chain:KMC 124 Link, 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost:Forged Alloy, Ø30.4*350mm
- Seat Clamp:Ø35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Nylon Lock-on, Ergonomic Comfort
- Brake:Front & Rear Hydralic Disc Brakes, with160mm discs, with power-cut-off function
- Brake rotor: 160mm, 1.9mm thick
- Kickstand:Side Kickstand, Alloy, Rear Mount
- Fenders:Plastic 26"x110mm
- Rear Rack:Stainless Steel Rear Rack
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork:Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim Material:Aluminum
- Rim Size:26" 36H Front & Rear
- Front Wheel Spokes:13G x 244/246mm, Black Stainless
- Rear Wheel Spokes:12G x 217/219mm, Black Stainless
- Tubes:Butyl Rubber, Schrader Valve
- Hubs:Disc Nutted Front /Rear Axles
- Tire: Fat Tires
- Tire Size: 26" x 4.0"
Inside the Box
Ebike x1
Battery x1
Charger x1
peddle x2
Tool Set x1
Manual X1
Bell & Phone Holder x1
MOOBELO M1 is engineered to offer a unique combination of power and versatility. Its standout features work together to create a superior riding experience. The core of its design is the dual-motor system, which provides greater acceleration efficiency than single-motor setups, allowing you to conquer steep hills and challenging terrains with ease. This is complemented by an industry-leading dual-battery system with a total capacity of 46Ah, which translates to a staggering 180-mile range in pedal-assist mode. Furthermore, the combination of a full-suspension system and all-terrain fat tires effectively absorbs shocks and vibrations, ensuring a smooth and comfortable ride even on the roughest roads. Together, these features make the MOOBELO M1 an exceptional electric vehicle that delivers on performance, range, and comfort.
The MOOBELO M1's impressive range is primarily due to its dual-battery system, which provides a total capacity of 46Ah. The claimed 180-mile range is achieved in pedal-assist mode (PAS 1), which maximizes battery efficiency. However, the actual range can vary based on several factors, as continuous high-speed operation significantly increases energy consumption. Additionally, rider weight, terrain, and headwind can also affect battery performance and overall range.
The dual-motor configuration is a key advantage of the MOOBELO M1. Compared to a single motor, a dual-motor system provides greater acceleration efficiency. It delivers powerful output, which is especially useful for tackling steep inclines, sand, or snow. You also have the flexibility to switch between using a single motor to conserve power or engaging both motors when you need extra performance.
The MOOBELO M1's all-terrain fat tires and dual suspension system work together to provide a superior riding experience. The wide tires disperse the rider's weight over a larger surface area, providing excellent traction and stability on loose surfaces like sand or gravel. Concurrently, the front fork and rear shock absorber effectively absorb bumps and vibrations , reducing rider fatigue and keeping the wheels in contact with the ground for better control, even on rough terrain.
Unlike mechanical brakes that use a cable, the hydraulic dual brake system uses fluid pressure to transmit braking force. This allows for a more responsive and powerful stopping force with less effort on the brake levers. This is a crucial safety feature for a high-speed vehicle like the MOOBELO M1, as it provides reliable and controlled braking performance in high-pressure situations, such as steep descents or heavy traffic.
To ensure optimal performance and longevity, regular maintenance is recommended for the MOOBELO M1. In addition to general cleaning, you should periodically check and lubricate the chain and brake pads. It's also vital to care for the battery by avoiding complete discharge, as this can accelerate the degradation of the lithium-ion cells.
